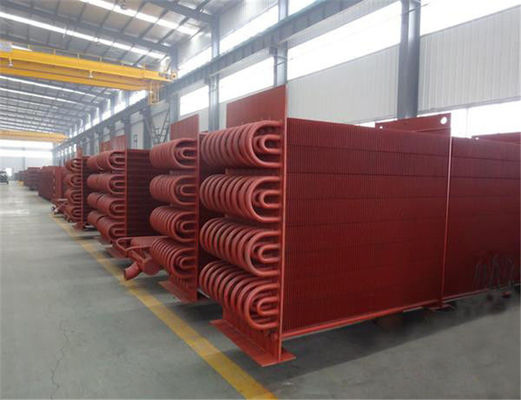

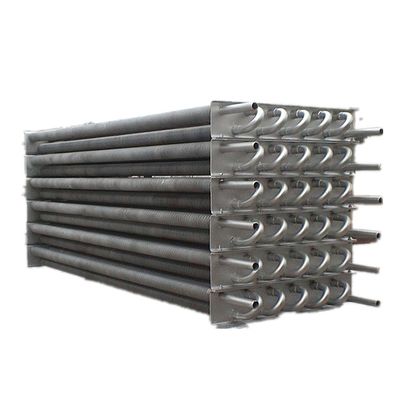

Wood Fired Portable Steam Boiler Economizer with 1 Year Warranty for Industrial Use
| Lugar de origem | Zhangjiagang, China |
|---|---|
| Marca | HD Boiler |
| Certificação | ISO9001,ASME,Grade A,SGS,EN |
| Número do modelo | Economizador do tipo nu |
| Quantidade de ordem mínima | 1 conjunto |
| Preço | $300 / set |
Contacte-me para amostras e cupons grátis.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.
xDetalhes do produto
| Tipo | Circulação natural | Estrutura | Tubos de incêndio e de água |
|---|---|---|---|
| Pressão | Baixo/de alta pressão | Estilo | Vertical |
| Combustível | Aquecidos a carvão | Saída | Água quente/vapor |
| Tratamento de superfície | Pintado | Tubo nua od | 25-1650 mm |
| Espessura do tubo nu | 2-40 mm | Espessura da barbatana | 00,6-3,0 mm |
| Altura da barbatana | 5-30 mm | Caminho do tubo de barbatana | 5-30 mm |
| Comprimento do tubo de barbatana | ≤12000 mm | Material | Aço carbono, liga, aço austenítico |
| Velocidade do gás de combustão | Número máximo permitido | ||
| Destacar | Wood Fired Economizer,Portable Steam Boiler Economizer,1 Year Warranty Economizer |
||
Descrição de produto
Wood Fired Generators Boiler Economizer for Portable Steam Boiler
Introduction
The economizer plays a crucial role in enhancing overall boiler thermal efficiency by recovering low-level energy from flue gas before it's exhausted to the atmosphere. This energy recovery occurs through heating the boiler feedwater. Economizers are tubular heat transfer surfaces that preheat boiler feed water before it enters the steam drum or furnace surfaces, significantly reducing operating costs by recovering extra energy from flue gas.
Procedure
Economizers minimize thermal shock risks and water temperature fluctuations as feed water enters the drum or waterwalls. They also accommodate increasingly stringent environmental regulations limiting nitrogen oxides and sulfur dioxide emissions. The design compensates for the lower gas-side heat transfer coefficient compared to water-side through finned outer tube surfaces that increase heat transfer area. The primary design objective is achieving necessary heat transfer at minimal cost, with flue gas velocity being a key criterion - higher velocities improve heat transfer and reduce capital costs.
Specifications
| Name (unit) | Specification (mm) |
|---|---|
| Bare pipe (OD) | 25-1650 |
| Bare pipe (Thickness) | 2-40 |
| Fin (Thickness) | 0.6-3.0 |
| Fin (Height) | 5-30 |
| Fin tube thread pitch | 5-30 |
| Fin tube length | ≤12000 |
Material: Carbon Steel, Alloy, Austenitic Steel (Nickel and Chromium or Manganese)
Quality Control
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam) to ensure complete boiler quality
- Hydraulic test report to verify standard working pressure and safety
Product Gallery
